Dynaco Dynakit Stereo (ST70) Schematic and Manual


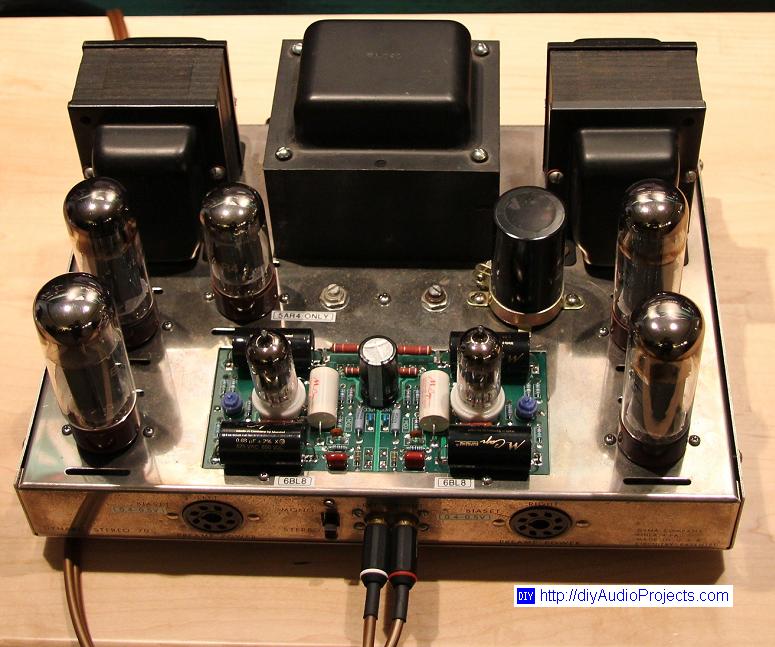

Dynaco Dynakit Stereo 70 (ST70) Tube Amplifier Schematic

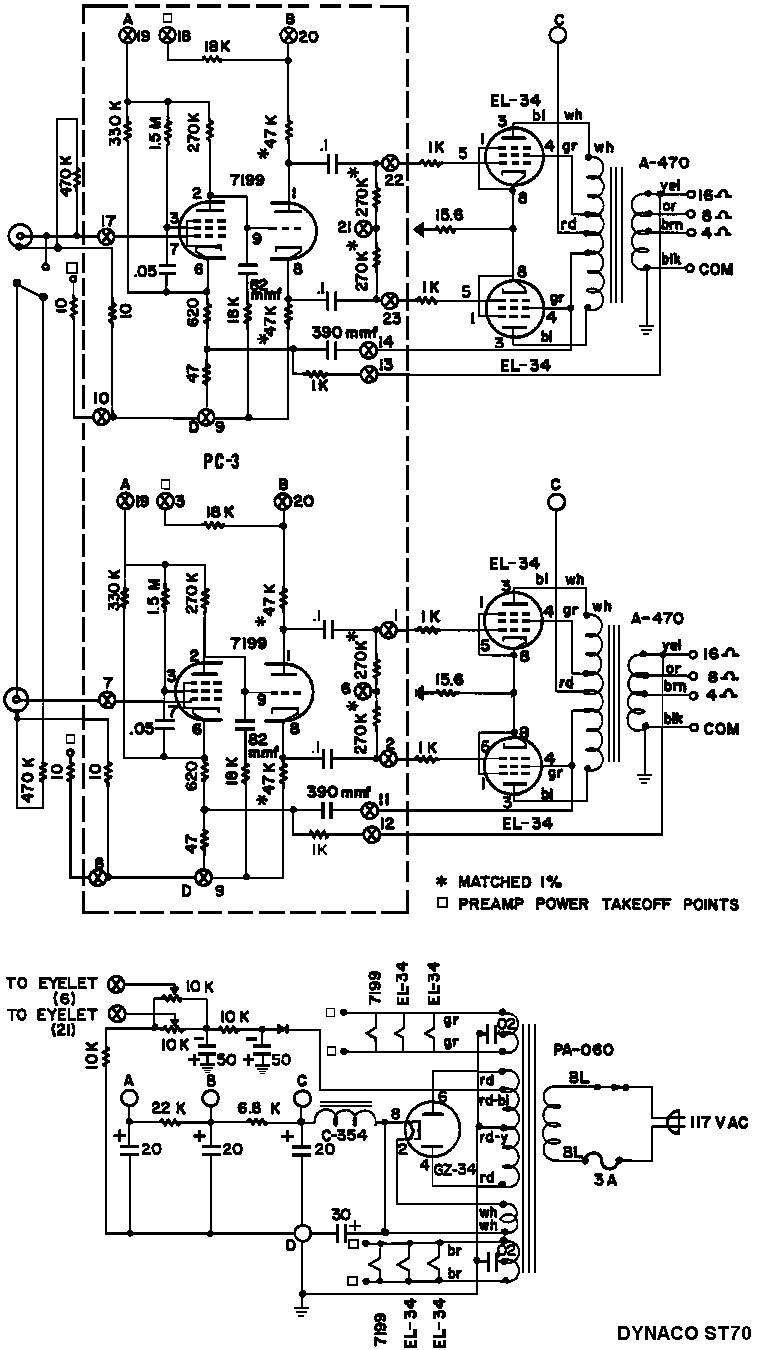

Scan of the Dynaco Dynakit Stereo 70 (ST70) Tube Amplifier Schematic from the instructions manual. The dynakit ST70 input stage uses a 7199 tube. The EL34 output stage is push-pull and the dynakit ST70 amplifier is rated at 35 Watts per channel. A GZ34 / 5AR4 rectifier tube is used in the power supply. There is more information available about tube based power supplies in the Power Supply Design for Vacuum Tube Amplifiers article.
