Dynaco Dynakit Mark III Tube Amp Schematic and Manual


Dynaco Dynakit Mark III Tube Amplifier Schematic

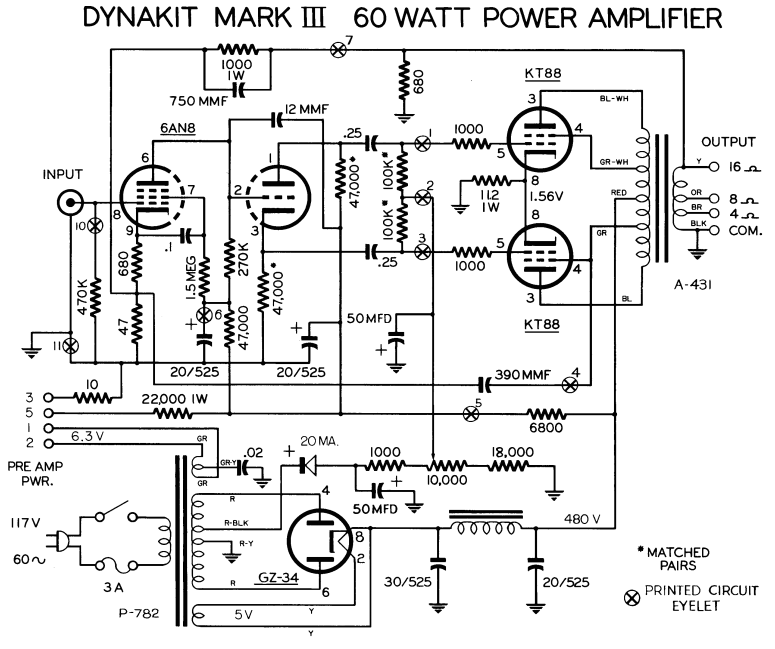

The scan below is the Dynaco Dynakit Mark III tube amplifier schematic from the instructions manual. The Dynaco Dynakit Mark III is a mono-block amplifier with a 6AN8 input stage and a push-pull KT88 output stage. The Dynaco Dynakit Mark III amplifier is rated at 60 Watts. The power supply uses a GZ34 tube rectifier and C-L-C filtering. More information about tube based power supplies is available in the Power Supply Design for Vacuum Tube Amplifiers article.

Dynaco Dynakit Mark III Tube Amplifier Schematic

Dynaco Dynakit Mark III Tube Amplifier Schematic

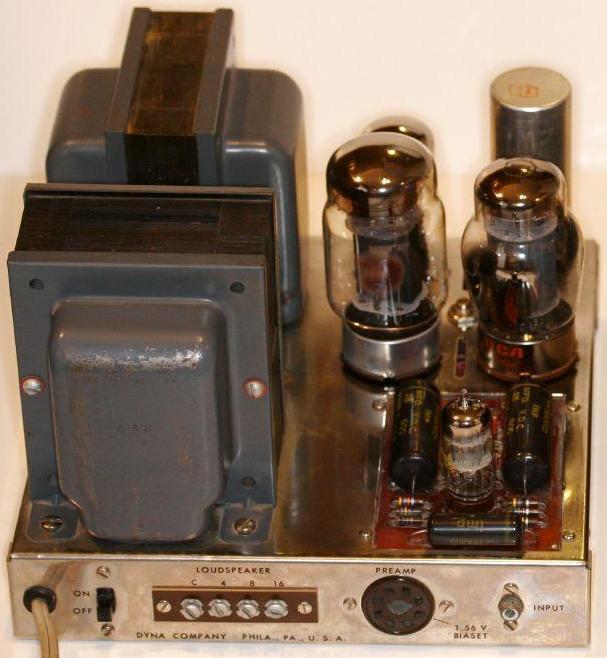

Photographs - Dynaco Dynakit Mark III Tube Amplifier

Dynaco Dynakit Mark III Tube Amplifier

Dynaco Dynakit Mark III Tube Amplifier



Dynaco Dynakit Mark III Tube Amplifier with Cover

Dynaco Dynakit Mark III Tube Amplifier with Cover


Instructions Manual - Dynaco Dynakit Mark III Tube Amp


More Dynaco Dynakit Tube Amplifiers
