Dynaco Dynakit Stereo 35 (ST35) Schematic and Manual


Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Schematic

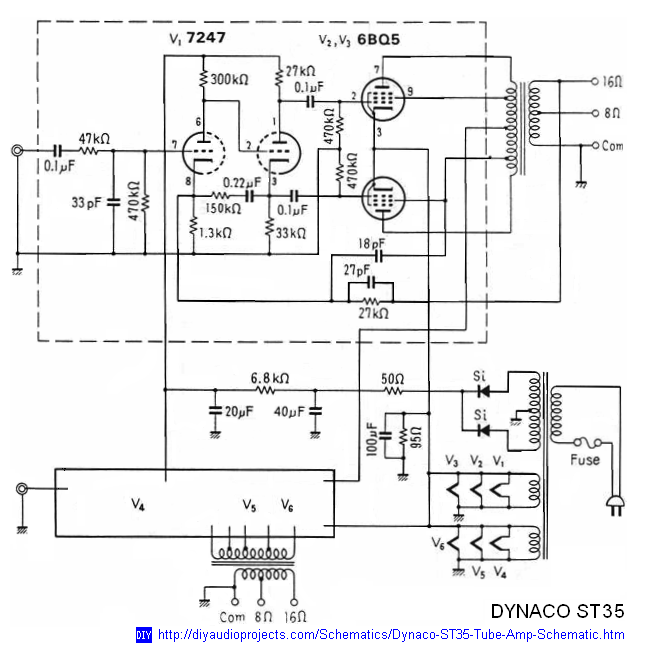

Scan of the Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Schematic from the instructions manual. The input stage uses a 7247 twin triode. The 6BQ5 output stage is push-pull and the dynakit ST35 amplifier is rated at 17.5 Watts per channel.

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Schematic

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Schematic


Instructions Manual - Dynaco Dynakit Stereo 35 (ST35) Tube Amp


Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Kit

Photos of a Dynaco ST35 Tube Amplifier Kit from dynakitParts which was put together by Jim (Wisconsin, USA). For more information about Jim's build and his impressions of the ST35 kit, see the Dynaco ST-35 Tube Amp Kit thread on the message Forum.

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Kit

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Kit

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Kit with Cage Cover

Dynaco Dynakit Stereo 35 (ST35) Tube Amplifier Kit with Cage Cover
