More Photographs - 12AX7 Tube Preamp Kit

Here are a few photographs of another 12AX7 Preamplifier Kit that I recently completed.

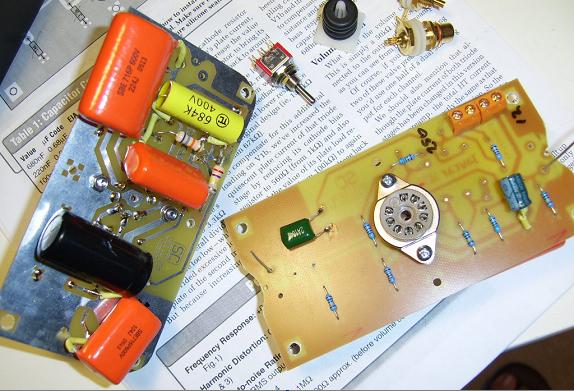

PCBs for 12AX7 Preamplifier Kit
Photograph 09 - PCBs for 12AX7 Preamplifier Kit

PCBs for 12AX7 Switch Mode Power Supply (SMPS)
Photograph 10 - PCBs for 12AX7 Switch Mode Power Supply (SMPS)

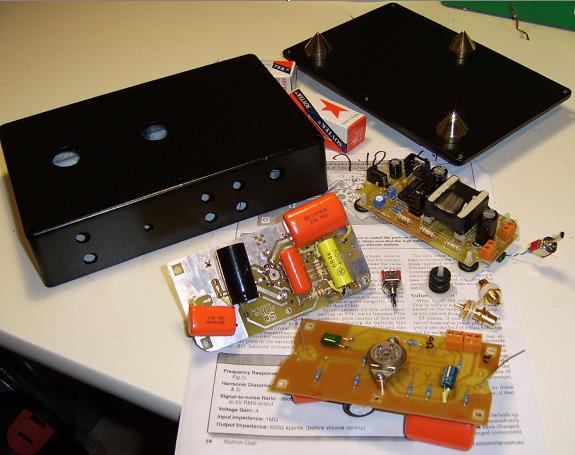

12AX7 PCBs and Enclosure
Photograph 11 - 12AX7 PCBs and Enclosure

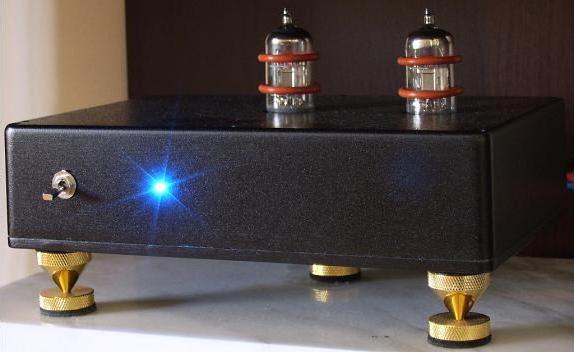

Finished 12AX7 Preamplifier Kit
Photograph 12 - Finished 12AX7 Preamplifier Kit


UPDATE - December 2008
Unfortunately the 12AX7 tube preamplifier kit is no longer available from the supplier. Note that this is a fairly simple tube preamp and once can easily build this using point-to-point construction and with conventional linear power supply. For the latest update on this project, see the 12AX7 Tube Preamplifier Project on the forum where you can ask questions.

 UPDATE  - December 2013
Take a look at the 4S Universal Tube Preamplifier (12A*7) Project if you are looking for a simple tube preamplifier circuit.
