Telequipment D52 Oscilloscope


Telequipment D52 Oscilloscope

The Telequipment D52 Oscilloscope is a straight forward bench oscilloscope which was designed primarily for TV servicing. It has built in triggering for TV line and field timebases with a y amp bandwidth of 6Mhz @ 100mV/cm and 1Mhz @10mV/cm. The D52 uses a 5" flat faced split beam CRT to provide a true dual trace. The D52 is comprised of 15 Valves (10 ECC88's, 4 ECF80's, plus one EB91), and 5 transistors.

Telequipment D52 Oscilloscope

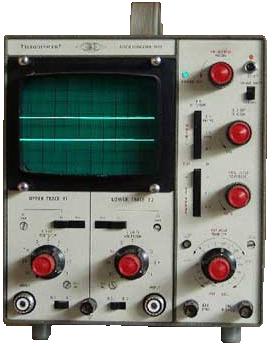

Photograph 1: Telequipment D52 Oscilloscope

This old vacuum tube based oscilloscope has since replaced with a DSO-2150 USB PC Based Oscilloscope.

Telequipment D52 Oscilloscope Manual
