American Wire Gauge (AWG) Table

Bookmark or share this page with others.

American Wire Gauge (AWG) Tables

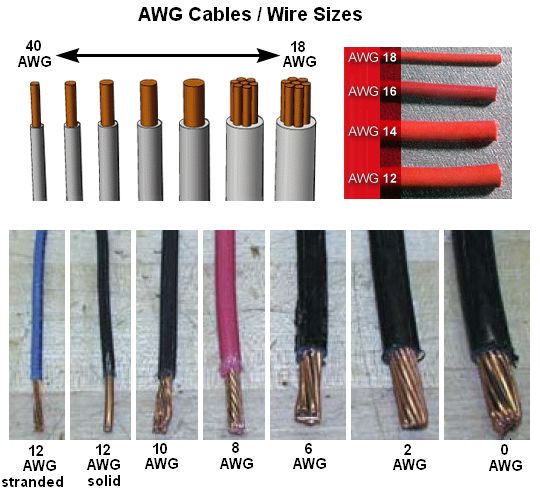

The table lists the American Wire Gauge (AWG) sizes for conductors. In addition to wire size, the table provides values load (current) carrying capacity, resistance and skin effects. The resistances and skin depth noted are for copper conductors. Detailed descriptions of each item are provided below the table.

AWG Diameter
[inches]
Diameter
[mm]
Resistance
[Ohms / 1000 ft.]
Resistance
[Ohms / km]
Max Current
[Amperes]
Max Frequency
for 100% skin depth
OOOO 0.46 11.684 0.049 0.16072 302 125 Hz
OOO 0.4096 10.40384 0.0618 0.202704 239 160 Hz
OO 0.3648 9.26592 0.0779 0.255512 190 200 Hz
0 0.3249 8.25246 0.0983 0.322424 150 250 Hz
1 0.2893 7.34822 0.1239 0.406392 119 325 Hz
2 0.2576 6.54304 0.1563 0.512664 94 410 Hz
3 0.2294 5.82676 0.197 0.64616 75 500 Hz
4 0.2043 5.18922 0.2485 0.81508 60 650 Hz
5 0.1819 4.62026 0.3133 1.027624 47 810 Hz
6 0.162 4.1148 0.3951 1.295928 37 1100 Hz
7 0.1443 3.66522 0.4982 1.634096 30 1300 Hz
8 0.1285 3.2639 0.6282 2.060496 24 1650 Hz
9 0.1144 2.90576 0.7921 2.598088 19 2050 Hz
10 0.1019 2.58826 0.9989 3.276392 15 2600 Hz
11 0.0907 2.30378 1.26 4.1328 12 3200 Hz
12 0.0808 2.05232 1.588 5.20864 9.3 4150 Hz
13 0.072 1.8288 2.003 6.56984 7.4 5300 Hz
14 0.0641 1.62814 2.525 8.282 5.9 6700 Hz
15 0.0571 1.45034 3.184 10.44352 4.7 8250 Hz
16 0.0508 1.29032 4.016 13.17248 3.7 11 k Hz
17 0.0453 1.15062 5.064 16.60992 2.9 13 k Hz
18 0.0403 1.02362 6.385 20.9428 2.3 17 kHz
19 0.0359 0.91186 8.051 26.40728 1.8 21 kHz
20 0.032 0.8128 10.15 33.292 1.5 27 kHz
21 0.0285 0.7239 12.8 41.984 1.2 33 kHz
22 0.0254 0.64516 16.14 52.9392 0.92 42 kHz
23 0.0226 0.57404 20.36 66.7808 0.729 53 kHz
24 0.0201 0.51054 25.67 84.1976 0.577 68 kHz
25 0.0179 0.45466 32.37 106.1736 0.457 85 kHz
26 0.0159 0.40386 40.81 133.8568 0.361 107 kHz
27 0.0142 0.36068 51.47 168.8216 0.288 130 kHz
28 0.0126 0.32004 64.9 212.872 0.226 170 kHz
29 0.0113 0.28702 81.83 268.4024 0.182 210 kHz
30 0.01 0.254 103.2 338.496 0.142 270 kHz
31 0.0089 0.22606 130.1 426.728 0.113 340 kHz
32 0.008 0.2032 164.1 538.248 0.091 430 kHz
33 0.0071 0.18034 206.9 678.632 0.072 540 kHz
34 0.0063 0.16002 260.9 855.752 0.056 690 kHz
35 0.0056 0.14224 329 1079.12 0.044 870 kHz
36 0.005 0.127 414.8 1360 0.035 1100 kHz
37 0.0045 0.1143 523.1 1715 0.0289 1350 kHz
38 0.004 0.1016 659.6 2163 0.0228 1750 kHz
39 0.0035 0.0889 831.8 2728 0.0175 2250 kHz
40 0.0031 0.07874 1049 3440 0.0137 2900 kHz

AWG Notes: American Wire Gauge (AWG) is a standardized wire gauge system used predominantly in the United States to note the diameter of electrically conducting wire. The general rule of thumb is for every 6 gauge decrease the wire diameter doubles and every 3 gauge decrease doubles the cross sectional area.

Diameter Notes: A mil is a unit of length equal to 0.001 inch (a "milli-inch" or a "thousandth of one inch") ie. 1 mil = 0.001".

Resistance Notes: The resistance noted in the table above is for copper wire conductor. For a given current, you can use the noted resistance and apply Ohms Law to calculate the voltage drop across the conductor.

Current (ampacity) Notes: The current ratings shown in the table are for power transmission and have been determined using the rule of 1 amp per 700 circular mils, which is a very conservative rating. For reference, the National Electrical Code (NEC) notes the following ampacity for copper wire at 30 Celsius:
14 AWG - maximum of 20 Amps in free air, maximum of 15 Amps as part of a 3 conductor cable;
12 AWG - maximum of 25 Amps in free air, maximum of 20 Amps as part of a 3 conductor cable;
10 AWG - maximum of 40 Amps in free air, maximum of 30 Amps as part of a 3 conductor cable.

Check your local electrical code for the correct current capacity (ampacity) for mains and in wall wiring.

Skin Effect and Skin Depth Notes: Skin effect is the tendency of an alternating electric current (AC) to distribute itself within a conductor so that the current density near the surface of the conductor is greater than that at its core. That is, the electric current tends to flow at the "skin" of the conductor. The skin effect causes the effective resistance of the conductor to increase with the frequency of the current. The maximum frequency show is for 100% skin depth (ie. no skin effects).
