DIY HiVi Center Channel Speaker Project

 Adam McCall   USA Flag   To email Adam, type out the email address.

DIY Center Channel Speaker with HiVi F5 / SD1.1A

This center channel speaker was created to match and aid the 1.618 Hi-Vi 3-way tower speakers during surround sound reproduction. The main focus was to match the upper chamber of the 1.618 towers. However a ported enclosure was chosen to aid in the extension of the response. The same crossover point was used as the tower speakers. On a side note, it was specially constructed to fit perfectly in my TV stand.

General Info:

  • Four - HiVi F5 Kevlar MidBass Drivers
  • Two - HiVi SD1.1A Dome Tweeters
  • Fully Shielded
  • 170 watts RMS @ 4ohms
  • 2nd / 3rd Order crossover at 4kHz
  • Frequency Response: 60Hz - 20kHz
  • Overall Dimension: 43"x 7"x 14"

The enclosure design for the center channel is shown below.

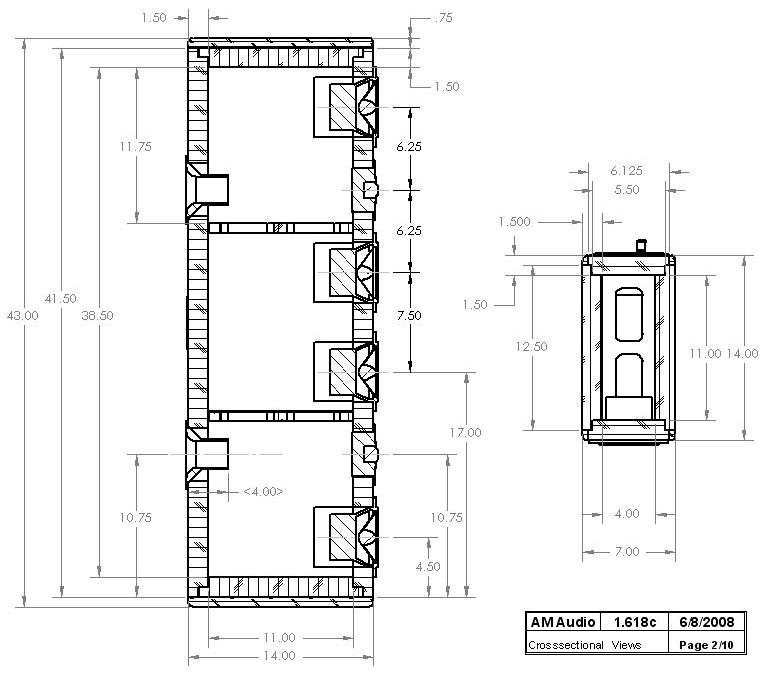

HiVi F5 / SD1.1A DIY Center Channel Speaker Enclosure Drawing
Figure 1: HiVi Home Theatre Center Channel Speaker Enclosure Drawing

The crossover design for the center channel speaker and the modelled frequency response is shown below.

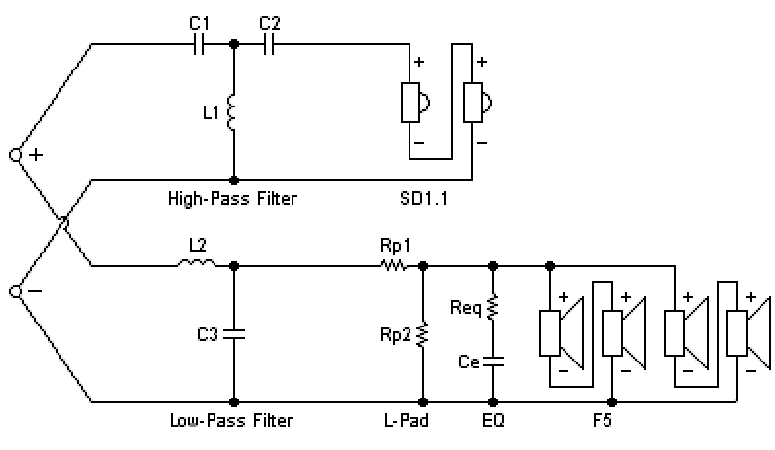

HiVi F5 / SD1.1A Crossover Schematic
Figure 2: HiVi Home Theatre Center Channel Speaker Crossover Schematic

2-Way Crossover Network
Low-Pass (LP) Filter: 2nd-Order Butterworth, Corner Frequency: 4000 Hz
High-Pass (HP) Filter: 2nd-Order Butterworth, Corner Frequency: 4000 Hz

C1 = 3.3 uF, Polypropylene, 0.00764 ohms
C2 = 8.2 F, Polypropylene, 0.00548 ohms
C3 = 15 F, Polypropylene, 0.0048 ohms L1 = 0.27 mH, Air Core(#18), 0.215 ohms
L2 = 0.13 mH, Air Core(#18), 0.16 ohms

Woofer Impedance Equalization Circuit
Req = 2.4 ohms
Ce = 25 uF

L-Pad Circuit: 1.32 dB
Rp1 = 0.51 ohms
Rp2 = 5.1 ohms

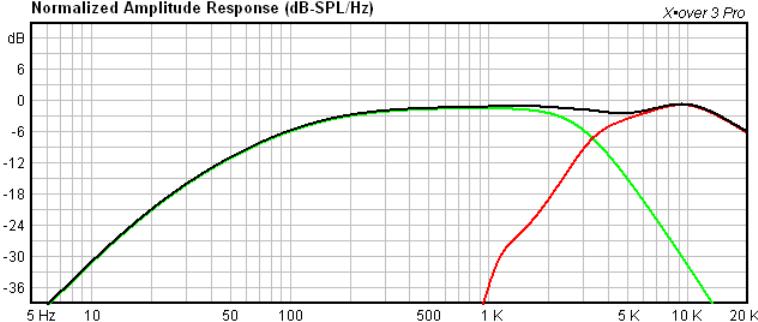

HiVi F5 / SD1.1A Center Channel Model Response
Figure 3: Modelled Frequency Response HiVi Center Channel Loudspeaker Enclosure


DIY Center Channel Speaker Construction

The center chanenel enclosure construction is shown in the photographs below.

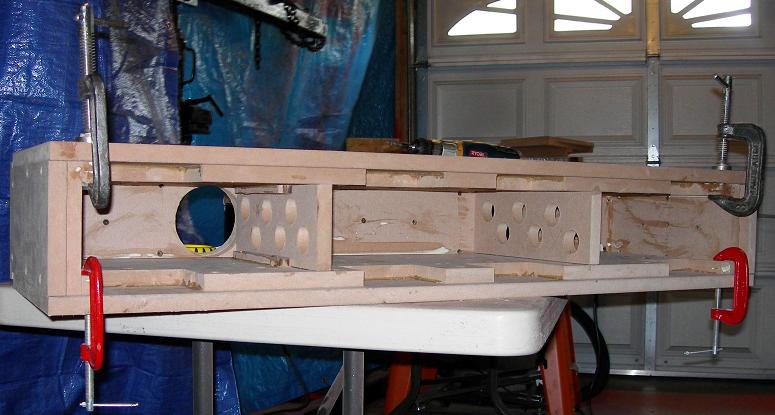

HiVi Center Channel Speaker Box Assembly
Photograph 1: Center Channel Box Assembly

HiVi Center Channel Speaker Enclosure

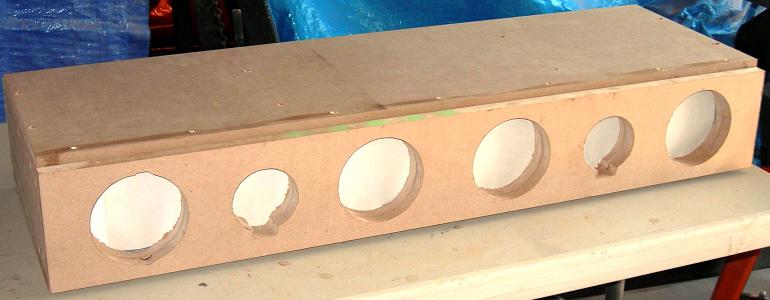

Photograph 2: MDF Center Channel ready for Painting

The assembled crossover and a quick sound check.

HiVi F5 / SD1.1A Cross Over

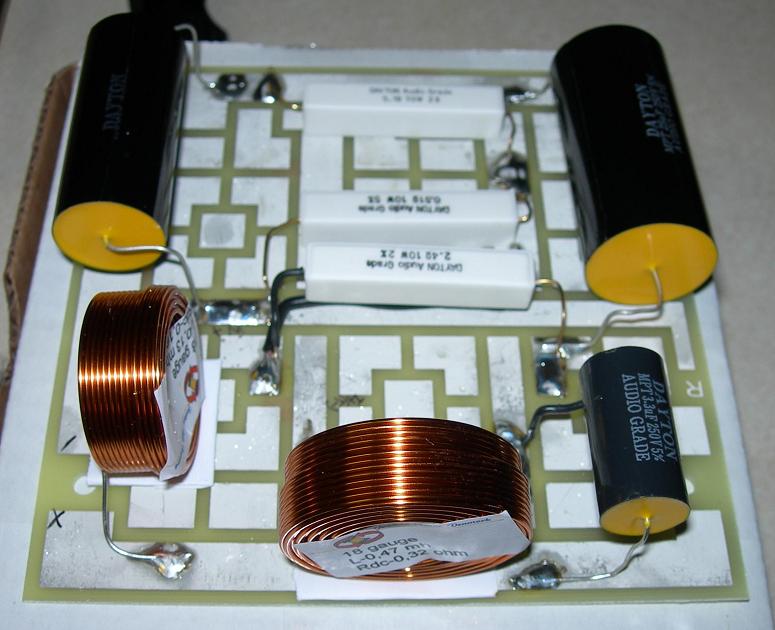

Photograph 3: Assembled HiVi F5 / SD1.1A Crossover

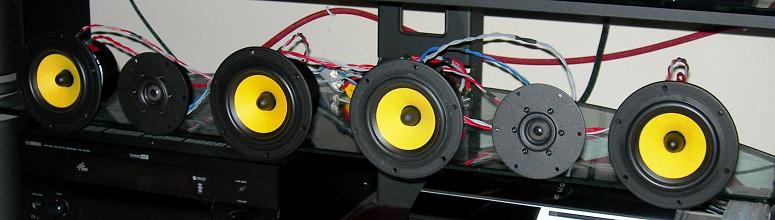

HiVi F5 Kevlar Midwoofer / SD1.1A Tweeter
Photograph 4: Sound Check of Crossover Circuit

The finished center channel cabinet is then primed and painted using several coats of an oil based epoxy paint and then finished with red oak trim.

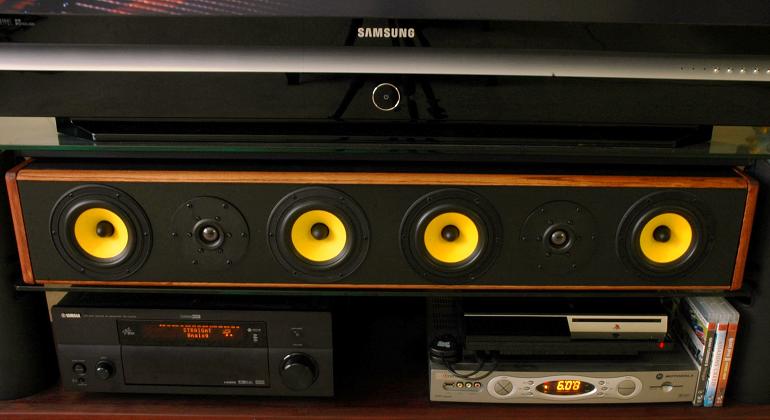

HiVi F5 / SD1.1A Center Channel Speaker
Photograph 5: HiVi F5 / SD1.1A Center Channel Speaker


DIY Center Channel Speaker Measurements

The measured room response for the home theater center channel is shown below.

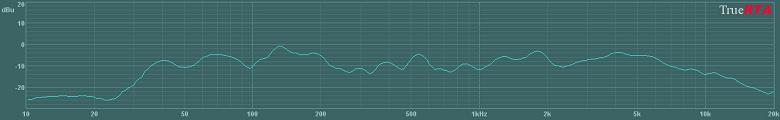

HiVi F5 / SD1.1A Center Channel Measured In Room Response
Figure 4: HiVi F5 / SD1.1A Center Channel Measured In Room Response

Perfect! My home theatre front is now seamless. The center matches very well with the towers. Dialogue is very clear and has an excellent warmth quality to it. Only time will tell as I watch more and more movies. So far, Black Hawk Down did excellent! And the few HD channels I get that produce 5.1, I have no complaints other than there needs to be more channels!!!


DIY Center Channel Speaker - Parts List and Costs

A list of the parts used for this project and corresponding cost is provided in the table below. All of the parts for this project are available from Parts Express.

PARTSEXPRESS PART# DESCRIPTION QTY PRICE TOTAL
260-317
255-216
255-204
100-088
100-074
091-624
091-600
095-280
095-286
004-.51
004-2.4
004-5.1
027-432
027-438
027-426
027-420
297-416
297-435
080-722
MATRIX
2Flare
OX6PAN3/4
OX6OVAL3/4
1lb Acousta Stuff
Jantzen .27mH 18awg Inductor
Jantzen .13mH 18awg Inductor
16Awg Gray Wire 100ft
16Awg Red Wire 100ft
Dayton Bpp-Sn Satin Binding Post
Dayton Sbpp-Si Binding Post Plate
1/4" (16-14) Female - 50pcs
.110" (16-14) Female - 50pcs
Dayton .51 Ohm 10W Resistor
Dayton 2.4 Ohm 10W Resistor
Dayton 5.1 Ohm 10W Resistor
Dayton 15uF Polypropylene Cap.
Dayton 25uF Polypropylene Cap.
Dayton 8.2uF Polyproplylene Cap.
Dayton 3.3uF Polypropylene Cap.
HiVi SD1.1A 1" Dome Tweeter
HiVi F5 5" MidBass
NTE Heat Shrink - Assort - 158pc
Matrix Circuit Board (madisound.com)
2" Flared Port (madisound.com)
#6 Pan Head 3/4" - Blk Ox & Wax (madisound.com)
#6 Oval Head 3/4" - Blk Ox & Wax (madisound.com)
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
2
12
24
$9.75
$5.18
$3.27
$14.70
$14.70
$15.96
$8.40
$3.98
$4.48
$1.25
$1.25
$1.25
$5.23
$6.58
$3.37
$1.69
$12.60
$35.64
$10.00
$7.00
$8.80
$0.03
$0.05
$19.50
$5.29
$3.27
$14.70
$14.70
$15.96
$8.40
$3.98
$4.48
$1.25
$1.25
$1.25
$5.23
$6.58
$3.37
$1.69
$25.20
$142.56
$10.00
$7.00
$17.60
$0.36
$1.20

Parts Total: $314.71US
Cabinets (MDF, Red Oak, Screws, Caulking, Glue, Lexan, Screws, Stain, Paint, Wood filler...): ~$110US
Total Project Cost: ~$425US

Cost estimate is a little on the high side as some of the material (wire, screws, glue, paint ...) may be left over from the Tower or Subwoofer build.

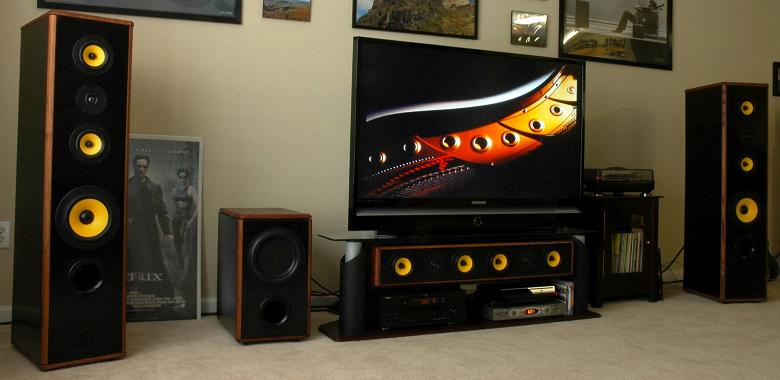

DIY HiVi Home Theatre Speakers
Photograph 6: DIY HiVi Home Theatre Speakers

The above photo shows the HiVi Center Channel with the 1.618 HiVi 3-way Tower Loudspeakers and the HiVi SP10 Subwoofer.
