3-Way Crossover Design - DIY 3-Way Hi-Vi Tower Speaker

I designed simply what best fit the drivers' capabilities while focusing on keeping the woofer in doing its job handling the bass, the mids handling the full midrange and so on. 500Hz and 4000Hz were chosen as the crossover frequencies. An L-pad circuit I felt was essential in keeping the response of the speaker perfect as possible. I didn't want anything to stick out. A schematic of the Hi-Vi 3 way crossover design is shown below.

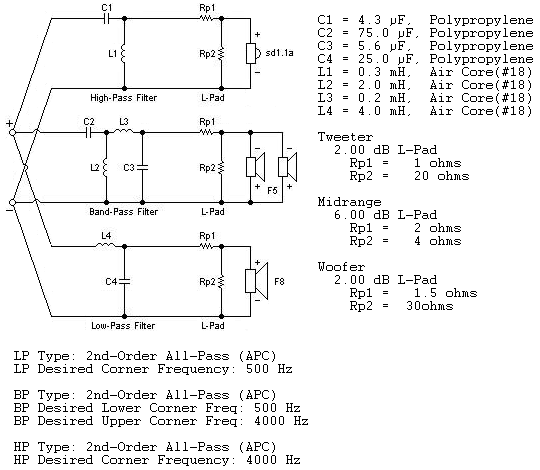

Hi-Vi 3-Way Crossover Schematic

Hi-Vi 3-Way Crossover Schematic

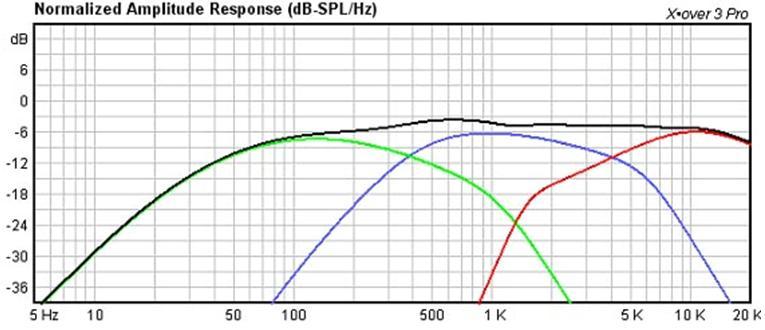

The modelled frequency response plot of the 3-way crossover is shown below.

Hi-Vi 3 Way Cross Over Frequency Response Plot

Hi-Vi 3 Way Crossover Frequency Response Plot

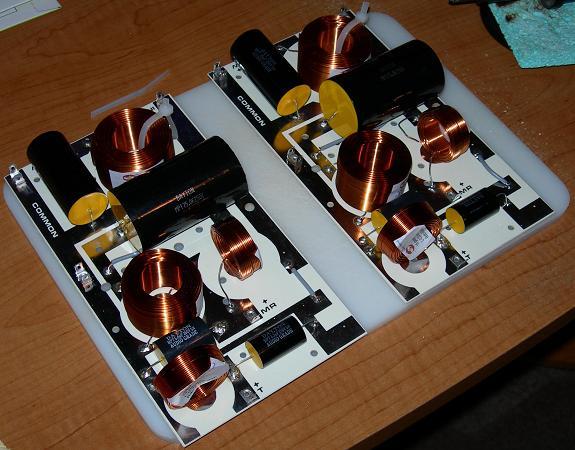

All of the crossover parts included the pcb are from PartsExpress. The images below show the completed crossover and testing of the 3-way crossover network with the Hi-Vi drivers.

Assembled 3-Way Cross Over

Assembled 3-Way Crossover

Testing the Crossover

Testing the Crossover
