Tang Band W3-1878 Fullrange Speaker Driver Transducer


Tang Band W3-1878 Fullrange Speaker Driver Transducer

The Tang Band W3-1878 is a 3" (75 mm) diameter fullrange speaker driver. The W3-1878 fullrange speaker driver features a underhung motor design with a large neodymium magnet. The speaker driver is built on a thick cast frame and uses a bamboo fiber paper cone and a rubber surround. Together, the driver has a relatively large excusrion (Xmax 4 mm). The W3-1878 speaker driver uses a unique phase plug which provides better high frequency dispersion. The Tang Band W3-1878 fullrange speaker driver is capable of an extended frequency response from about 90Hz to 20kHz. In North Americal the Tang-Band W3-1878 driver is available for purchase from Parts Express.

Tang Band W3-1878 Full-range Speaker Drivers

Photograph 1: Tang Band W3-1878 Fullrange Speaker Drivers

Tang Band W3-1878 Full-range Speaker Drivers

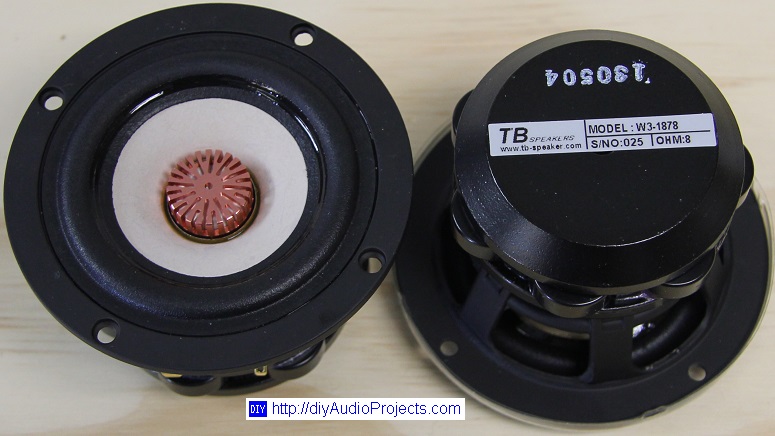

Photograph 2: Bottom - Tang Band W3-1878 Fullrange Speaker Drivers

The Tang Band W3-1878 speaker drivers came neatly packaged in a cardboard boxes which indicated that the speakers were manufactured in China. There was no gasket, mounting screws or datasheet provided with the W3-1878 drivers.

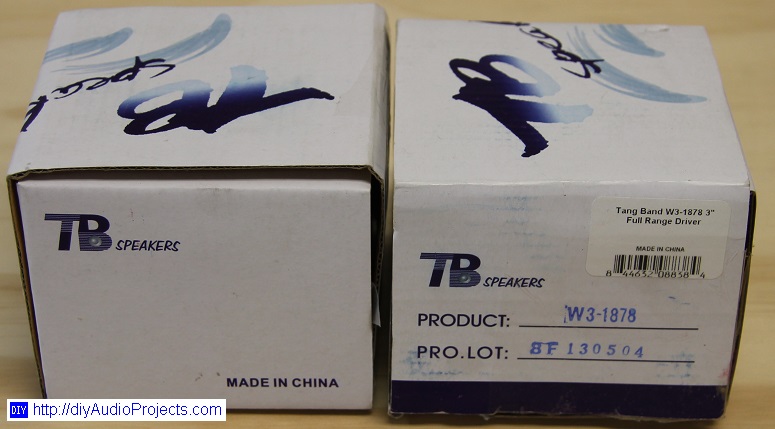

Tang Band W3-1878 Fullrange Speaker Driver Boxes

Photograph 3: Tang Band W3-1878 Fullrange Speaker Driver Boxes

The Tang Band W3-1878 speaker is an overall excellent driver. The W3-1878 is beautifully manufactured and sounds equally as nice. The driver provides a very wide frequency response and distortion is low. The off-axis performance excellent within about 15 degrees. The W3-1878 is a top performing speaker driver that provides good value. The Tang Band W3-1878 speaker driver is available from Parts Express.


Thiele/Small (T/S) Parameters - Tang Band W3-1878 Speaker Driver

The Thiele/Small Parameters of the Tang Band W3-1878 speaker drivers have been measured using the Dayton Audio Test Systems (DATS). The T/S parameters from the small signal speaker testing as well as the parameters noted on the W3-1878 datasheet are summarized in Table 1. The measurements were made at a room temperature of about 18 degrees Celsius.

Table 1: Thiele/Small (T/S) Parameters - Tang Band W3-1878 Fullrange Driver

 Parameter  Tang Band Driver 1 Driver 2
Fs 75 Hz 87.48 Hz 86.81 Hz
Vas 3.08 L -- 2.356 L
Qts 0.28 0.37 0.349
Qes 0.34 0.457 0.434
Qms 1.67 1.93 1.78
Re  6.5 Ohms   6.42 Ohms   6.69 Ohms
Le 0.023 mH -- --
 Le @ 1 kHz  -- 0.901 mH 0.907 mH
 Le @ 10kHz  -- 0.182 mH 0.183 mH
SPL 88 dB 87.6 dB 87.4 dB

Notes:
  - SPL estimated with Radio Shack 33-2050 SPL Meter.
  - T/S parameter measurements made with Dayton Audio Test Systems (DATS).

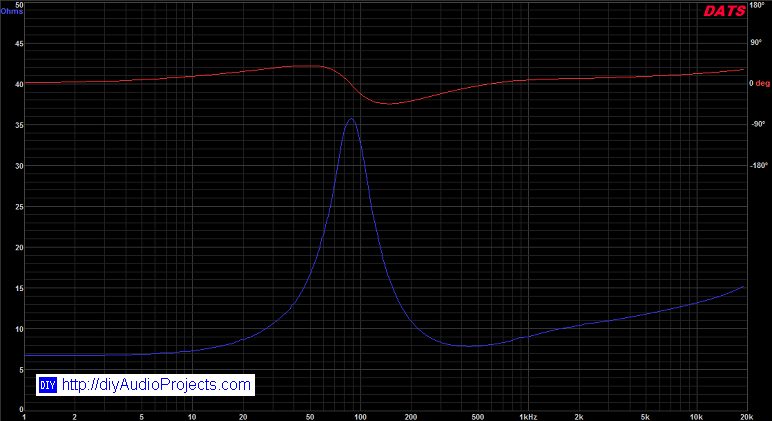

Figure 1 shows the impedance sweep of the Tand Band W3-1878 speaker driver produced using the Dayton Audio Test Systems (DATS).

Tang Band W3-1878 Measured Impedance Response Plot

Figure 1: Tang Band W3-1878 Measured Impedance Response Plot

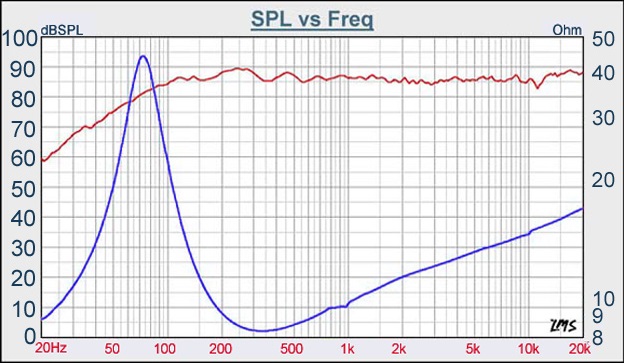

The frequency and impedance response plot from the Tang Band W3-1878 datasheet is show in Figure 2.

Tang Band W3-1878 Frequency Response and Impedance

Figure 2: Tang Band W3-1878 Frequency Response and Impedance (from Datasheet)
