Fostex FX120 Bass Reflex Box Plans


Fostex FX120 Bookshelf Bass Reflex Box Plans

Below are the Fostex recommended speaker box plans for the Fostex FX120 fullrange speaker driver. The bookshelf bass reflex plans are from the Fostex website. See the Fostex FX120 Bookshelf Bass Reflex Speaker project page for more information.

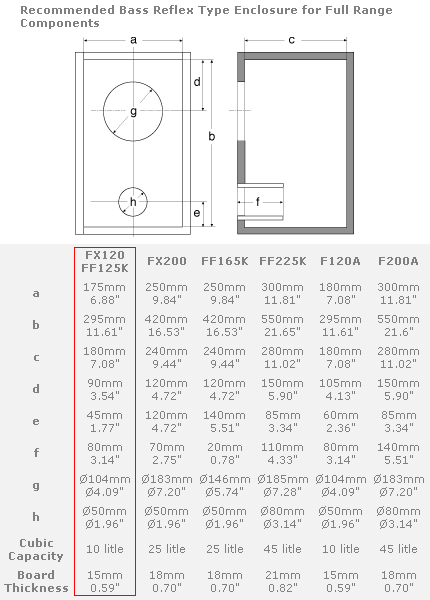

Fostex FX120 Recommended Bass Reflex Enclosure Plans

Figure 1: Fostex FX120 Recommended Bass Reflex Enclosure Plans


Fostex FX120 Double Bass Reflex Box Plans

The Double Bass Reflex enclosure drawing shown below is from the Japanese Fostex FX120 Datasheet / Notes (PDF 540kB) which were included in the Fostex FX120 speaker driver box.

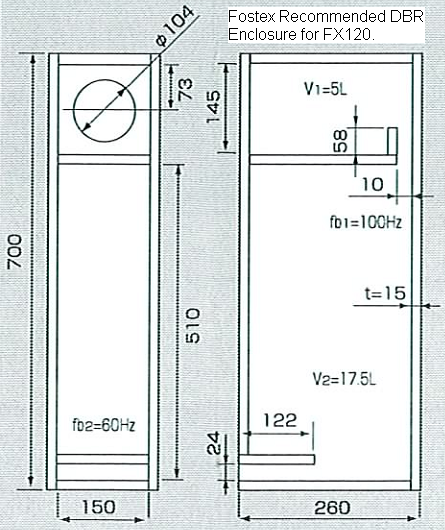

Fostex FX120 Recommended Double Bass Reflex Enclosure Plans

Figure 2: Fostex FX120 Recommended Double Bass Reflex Enclosure Plans

Return to the Fostex FX120 fullrange speaker driver / transducer page.
